Complete systems and hardware for intelligent traffic control in the cities, including traffic light controllers and traffic controlling center for complex monitoring and adaptive traffic management.
We offer smart systems of traffic control that can be adjusted according to particular needs of any city or a given traffic situation. The system includes independent control of intersections as well as tools for automatic adaptive traffic control based on current traffic flow.The system allows an active public transport preference and detection of available pre-set routes for emergency vehicles.

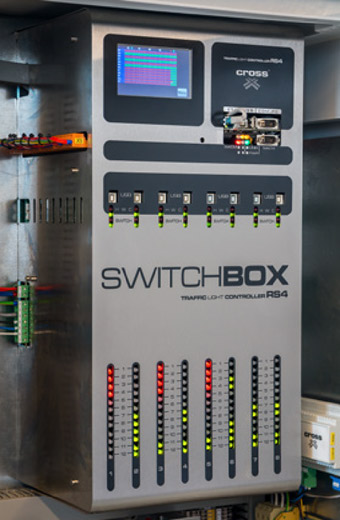

CROSS RS 4 is the fourth generation of our most powerful traffic light controller. All CROSS traffic light controllers can work in the decentralized mode in a “master – slave” coordination and/or can be integrated into an urban traffic management center. CROSS RS 4 is able to process information from various traffic detectors. Signal head outputs are fully configurable and each output is individually monitored. All CROSS traffic light controllers meet every security criteria on the highest level.
- Fire brigade, police, ambulance preference in 13 preset routes
- Number of signal groups – max. 64
- Number of signal head outputs – max. 288
- Monitoring of each signal head output
- Number of loop detectors – max. 128
- Number of usable external inputs – max. 248
- Number of pedestrian push buttons – max. 111
- Maximum number of all signal plan frameworks – max. 68
- Number of stages in each signal plan – max. 16
- Number of stages of manual control – max. 6 + all-red
- Interface via RS 232, Ethernet, USB, GSM, GPS, 3G, optionally: opto-isolated RS 232, RS 485, DSL
- 4,3“ LCD touch display

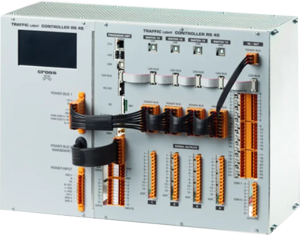

CROSS RS 4S model is a smaller and more compact version of the RS 4 traffic controller. It processes a lower amount of inputs and is designed for fast and simple installation. The controllers allow connections with various types of peripheries and plug-in modules
- Fire brigade, police, ambulance preference in 13 preset routes
- Number of signal groups – max. 64
- Number of signal head outputs – max. 192
- Monitoring of each signal head output
- Number of loop detectors – max. 128
- Number of usable external inputs – max. 200
- Number of pedestrian push buttons – max. 72
- Maximum number of all signal plan frameworks – max. 68
- Number of stages in each signal plan – max. 16
- Number of stages of manual control – maximum 6 + all-red
- Interface via RS 232, Ethernet, USB, GSM, GPS, 3G, optionally: opto-isollated RS 232, RS 485, DSL
- 4,3“ LCD touch screen
The CROSS software package contains a comprehensive range of products for configuration, remote control, and monitoring of traffic controllers. It can also be used for traffic planning, traffic situations modelling, device supervision, traffic monitoring and adaptive control. The system is based on CROSS eDita® (maintenance and programming software) and eDaptiva® (full-featured urban traffic management center), which cooperate together. The solution is complemented by an add-on module – Invipo web thin client for system monitoring by using eDaptiva® services.

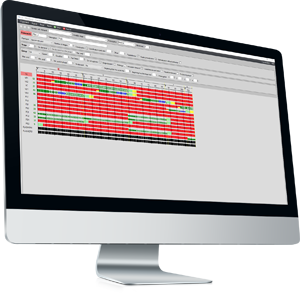

CROSS PTC is a software tool for parametric programming and uploading of traffic definitions into CROSS traffic light controllers (with the option of real‑time monitoring).

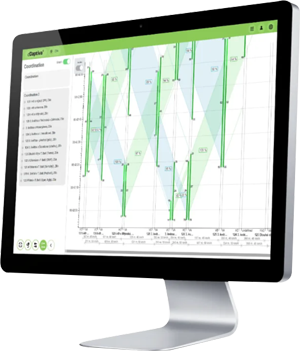

eDaptiva® is a multi-featured urban traffic management center. eDaptiva® provides monitoring, supervision, and adaptive control and meets different requirements of small, middle-sized or large urban areas. Basic system monitoring is available also via eDaptiva® web thin client in an online form of Invipo interface.
